Get fast, organized access to the most-used specifications and maintenance procedures all in one place.

Accessing the Specifications Quick Reference

1. Select a vehicle.

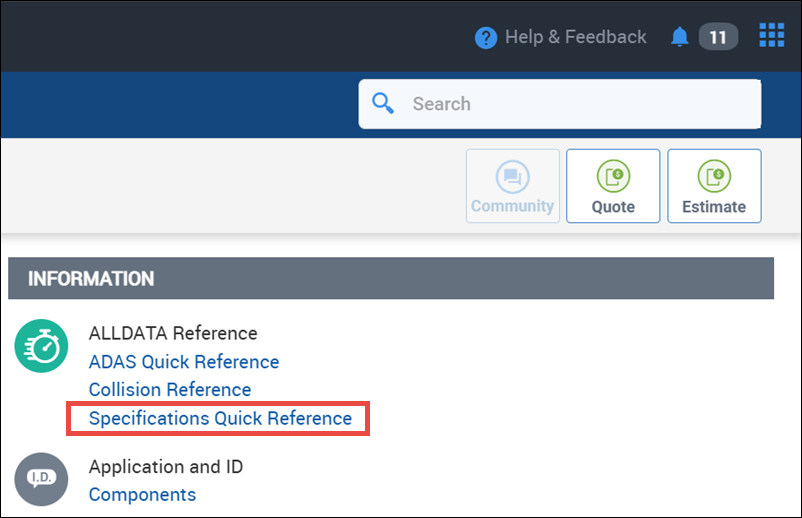

2. Under Information >> ALLDATA Reference, select Specifications Quick Reference.

   • Notes:
     • Opening the Specifications Quick Reference from the Vehicle level will display all available specifications for the entire vehicle.
     • Opening the Specifications Quick Reference from a component, will only display the specifications available for that component group (e.g., engine, brakes, etc.).

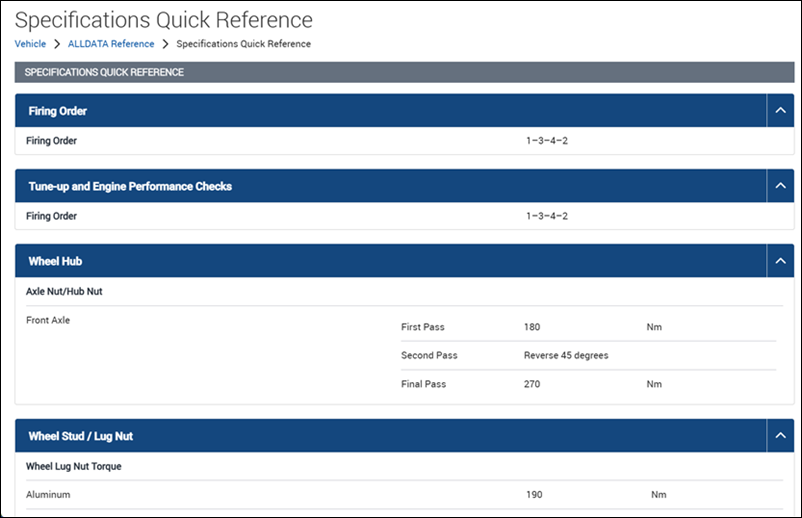

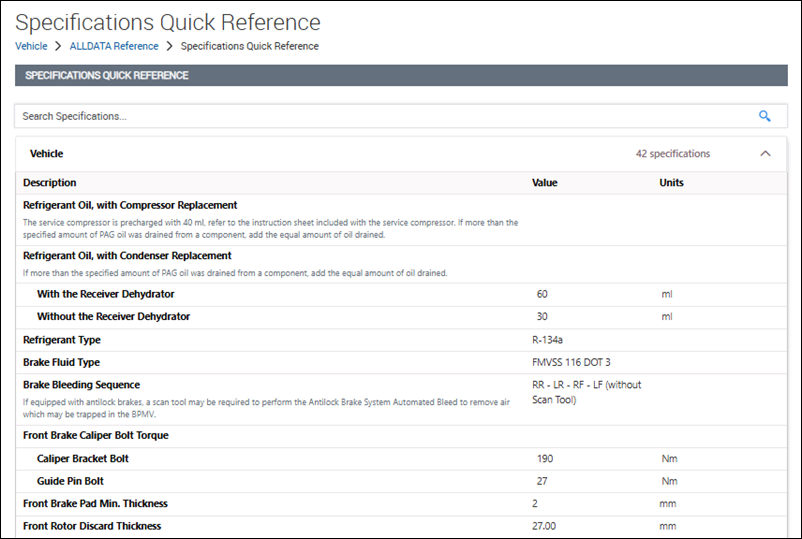

Information available in the Specifications Quick Reference

Notes - Available information will vary by selected vehicle. Initial release limited to MY2018 vehicles and newer. Additional vehicles will continue to be published as part of our daily content updates.

• Brakes
  • Bleeding Sequence
  • Brake Lining (thickness)
  • Rotor/Drum (thickness, runout and variation)
  • Disc Brake Caliper Torque Specification
• Chassis
  • Axle Nut/Hub Nut (torque)
  • Ball Joint Wear (measurement)
  • Wheel Lug Nut (torque)
• Engine
  • Engine Oil Drain Plug (torque)
  • Engine Oil Filter (torque)
  • Fuel Filter Location (text only)
  • Fuel Pressure Specifications
  • Ignition Firing Order (text only)
  • Spark Plug (gap and torque)
• Fluids
  • Brake Fluid (type)
  • Clutch Fluid (type)
  • Coolant (type and capacity)
  • Diesel Emission Fluid (type and capacity)
  • Differential Fluid (type and capacity)
  • Engine Oil (type and capacity)
  • Final Drive Fluid (type and capacity)
  • Power Steering Fluid (type)
  • Refrigerant (type and capacity)
  • Refrigerant Oil (type and capacity)
  • Transfer Case Fluid  (type and capacity)
  • Transmission/Transaxle Fluid (type and capacity)
