Unlike some industries where performance metrics are vague or long-term, repair shops live and die by the numbers. How many vehicles come through the bay doors each day? How complex are the repairs? How many skilled hands are available to do the work? Layer in the local economy, seasonal demands, parts availability, and you quickly find yourself juggling dozens of interdependent variables.

Yet amid this complexity, one factor quietly shapes everything: shop layout.

The Hidden Engine of Efficiency

It’s easy to focus on staffing levels or marketing when evaluating shop success. But walk into a poorly laid-out repair shop, and you’ll instantly feel the inefficiency – techs walking extra steps to grab tools, cars awkwardly wedged into tight spaces, and bottlenecks where diagnostics, repairs, and paperwork clash.

A smart shop layout can add hours of productive time to each day without having to hire a single additional technician. Bays should be positioned to minimize vehicle movement. Tools and diagnostic equipment must be placed where they’re needed most often. Even small changes – like relocating a printer or organizing parts storage – can yield big gains over time.

In my shop, for example, we use a rack-and-folder system to streamline daily operations. While I’ve made small adjustments over time, its core purpose has remained consistent. What has evolved more dramatically is the layout and function of our service bays – an adaptation driven by the ever-changing nature of vehicles.

As vehicles have grown more complex and customer expectations have evolved, our shop layout has had to keep pace. The rack-and-folder system acts as the backbone of our daily workflow. Each technician has access to a dedicated folder containing job details, parts needed, notes from the service writer, and any diagnostic data. This system reduces time spent asking questions or searching for job information, allowing techs to focus on what they do best – fixing cars.

But organizational tools only go so far if the physical layout isn’t built for efficiency. That’s where our bay specialization comes in.

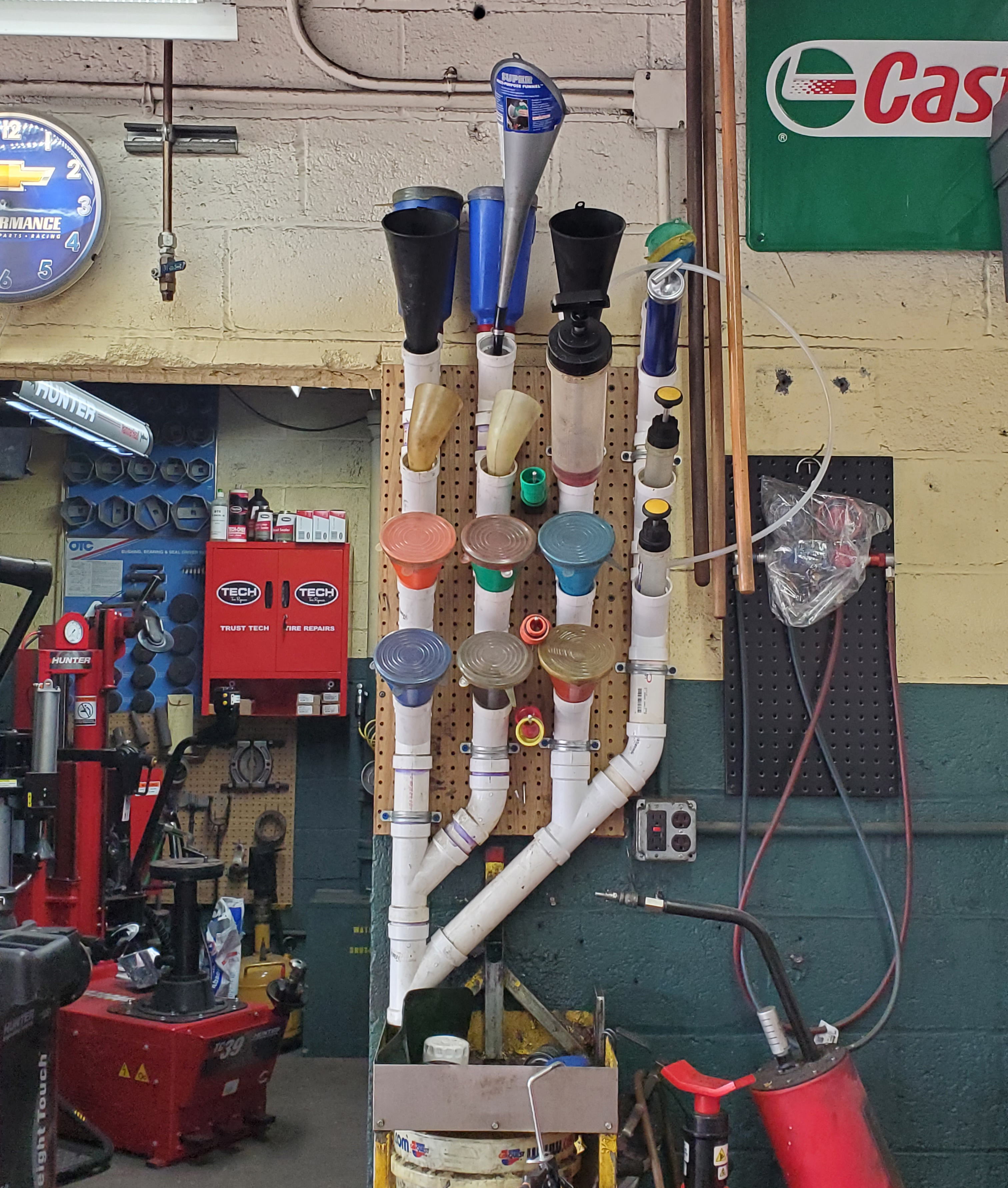

Bay 1: Designated for general service work, Bay 1 is where oil changes, tire rotations, and fluid checks take place. These are the quick turnaround jobs that keep the schedule flowing and the customer happy. By keeping these services in one area, we avoid clogging more specialized bays with routine maintenance work.

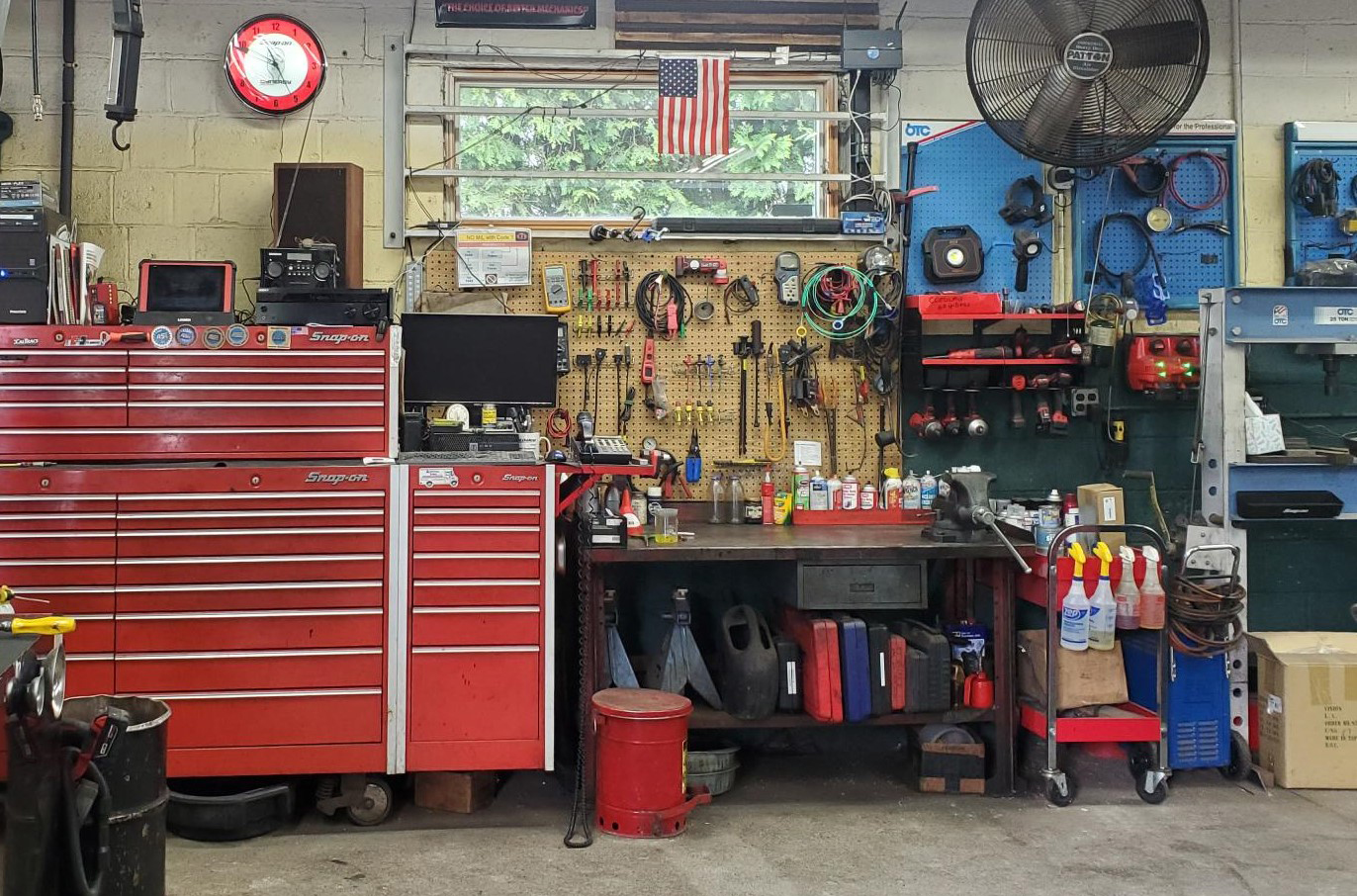

Bay 2: Set up for heavier mechanical repairs, Bay 2 is where timing belts and chains, suspension work, engine mounts, and other labor-intensive jobs occur. This bay is equipped with heavier duty lifts, specialized tools, and the extra space needed for components that come off and need room for safe storage during the repair. Keeping this work isolated prevents interference with the more rapid pace of Bay 1.

Bay 3: Dedicated exclusively to diagnostics, Bay 3 is what we call our “scanners and scopes” station. With the rise of advanced driver assistance systems (ADAS), hybrid technologies, and increasingly computerized drive trains, it’s essential to have a space reserved for focused, undisturbed diagnostic work. This bay is quieter, cleaner, and stocked with laptops, scan tools, scopes, and diagnostic-specific reference materials. The goal is to allow the techs to think critically and work without distraction.

While we occasionally shift workloads depending on demand, having defined purposes for each bay has made our shop more predictable and efficient. Technicians know exactly where tools are, service writers can schedule work more intelligently, and the entire team spends less time transitioning between jobs. In the end, these changes haven’t just improved productivity – they’ve also improved morale and job satisfaction.

Numbers Don't Lie

Consider two shops with identical staff and service menus. One is generating 40% more revenue per month. Why? Often, it's not just harder work – it's smarter work. One manager may be tracking repair time per job, organizing tasks by skill level, or designing workflows to reduce downtime. These decisions aren’t flashy, but they’re measurable.

For example:

• A technician walking an extra 30 seconds to get a tool 20 times a day wastes over 4 hours a month.
• A bottleneck at the parts counter can delay every repair in the shop.
• Inefficient parking or vehicle flow can cost an extra 5-10 minutes per job.

Multiply those delays by dozens of cars, and it’s clear why some shops stay slammed with work yet struggle to stay profitable.

Adapting to Change

Efficiency isn't static. As your customer base shifts, your layout and operations should too. Adding tire service? You’ll need new equipment placement and training. Hiring more techs? You’ll need to rethink workspace division and tool access.

And then there’s technology: Digital inspections, online scheduling, and automated parts ordering all demand space, processes, and training. A layout that worked five years ago might present a constraint today.

Lessons Beyond the Shop

The principles that drive auto shop efficiency apply to almost any business:

• Optimize layout for flow – not just appearance.
• Measure performance constantly – then adapt.
• Don’t underestimate the cost of small inefficiencies.
• Think of your business as a machine with interconnected parts.

In the end, a well-run repair shop isn’t just a place to fix cars – it’s a living blueprint for operational excellence.

Editors Note: Look for future articles from Ron Ananian, The Car Doctor, on how to improve shop flow and calculating the cost of business.
