Using the Parts and Labor Catalog
The Parts and Labor Catalog can be accessed by clicking one of the following options on the Work screen:
Includes Parts | Includes Labor | |
|
|
|
|
|
|
|
|
|
Once the Catalog is open, it is easy to move between tabs for additional parts and labor.
Add items from the Parts and Labor Catalog:
Using the OEM Labor Times option
-
Click Work >> Add Job >> OEM Labor Times >> select the vehicle information.
-
Select a Parts Category >> locate the required parts and labor for the job >> click Add to place the items into the Shopping Cart.
-
Additional parts and labor are available from the Linked Part Categories menu.
-
-
Click the Shopping Cart icon to review and make changes to the selected items or...
-
Click Add to Document to place all of the selected items onto the Work Document and return to the Work screen.
-
Using the Catalog option
IMPORTANT - Before using catalogs to add parts, follow the steps in Online Parts Catalog Setup.
-
The following parts catalogs are integrated to display within ALLDATA Manage Online with a similar look and feel:
- OEM
- AutoZone
- Transtar
- Nexpart
-
The following tire and wheel catalog is also integrated into ALLDATA Manage Online but works slightly different:
- ATD (American Tire Distributors)
-
The following parts catalogs link to websites outside of ALLDATA Manage Online and will each have a different look and feel:
- IMC
- WHI
- TurboParts (DST)
- AutoCat+
- Federated Autoi
- IAP (Internet Auto Parts)
To add parts using the Catalog Parts option:
-
On the Work tab, select Add Job >> Catalog Parts >> select the vehicle information.
-
If no vehicle has been selected or the selected vehicle is not recognized, select the Year, Make, Model and Engine >> Select.
-
The catalogs will load and display Part Categories for the selected vehicle.
-
Select a catalog tab.
-
Add parts to the Manage Online Catalog Basket using one of the following methods:
Integrated Parts Catalogs

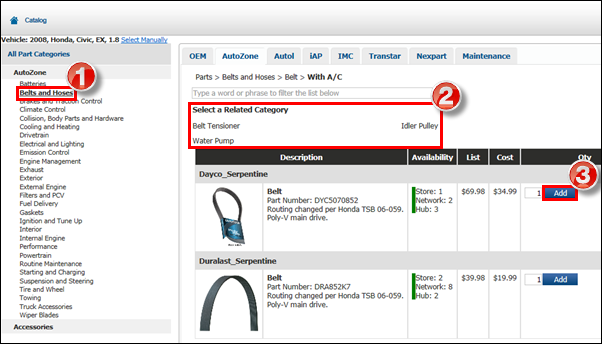

Select a Part Category >> Related Category if necessary >> Add.
-
Repeat this step to add additional parts to the Manage Online Catalog Basket.
-
Note: When using an integrated catalog with multiple suppliers, click the supplier for the catalog you wish to view.
-
ATD Tire and Wheel Catalog
Search by Vehicle
-
Verify the vehicle and Trim >> click Go.
-
Select one of the following:
-
Show Tires - A list of OE sized tires will appear.
-
Show Wheels - A list of OE sized wheels will appear.
-
-
To show additional sizes:
-
Click Show Wheel Plus sizes.
-
Select a size.
-
Search by Tire Size
Enter the Tire Size >> click Go.
-
Note: For the best results, enter numbers only. (example: 2355018 instead of P235/50R18.
Adding Tires and Wheels
After searching for tires or wheels:
-
Select any necessary Tire Extras (For tires only).
-
Note:The quantity of extras added to the document will match the quantity of tires that have been added.
-
-
Filter your search results by unchecking any of the boxes in the Refine By menu on the left.
-
Select a quantity (Qty) >> click add.
External Parts Catalog

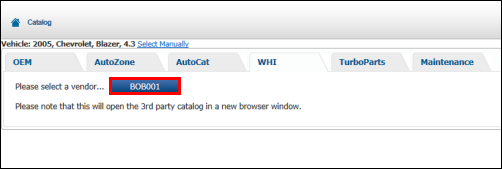

WHI
- Select a supplier.
- The WHI catalog will appear in a new window or tab.
- Add all required parts to the WHI shopping cart.
- Select the WHI shopping cart.
- Confirm the items to be transferred >> select Send Cart to Your Application.
- The selected items will be added to the Manage Online Catalog Basket.

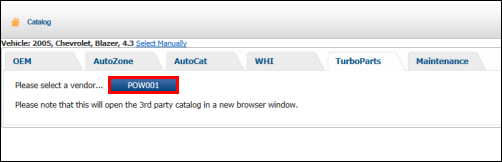

TurboParts (DST)
- Select a supplier.
- The TurboParts catalog will appear in a new window or tab.
- Add all required parts to the TurboParts shopping cart.
- Select the TurboParts shopping cart.
- Confirm the items to be transferred >> select Transfer.
- The selected items will be added to the Manage Online Catalog Basket.
IMC
- Select a supplier.
- The IMC catalog will appear in a new window or tab.
- Add all required parts to the IMC shopping cart.
- Select the IMC Shopping Cart.
- Confirm the items to be transferred >> select Transfer
- The selected items will be added to the Manage Online Catalog Basket.
Federated Autoi
- Select a supplier.
- The Federated Autoi catalog will appear in a new window or tab.
- Add all required parts to the Federated Autoi shopping cart.
- Select the Federated Autoi Shopping Cart.
- Confirm the items to be transferred >> select Export to POS.
- The selected items will be added to the Manage Online Catalog Basket.
IAP (Internet Auto Parts)
- Select a supplier.
- The IAP catalog will appear in a new window or tab.
- Add all required parts to the IAP Parts Quote.
- Select View active quote >> Go.
- Confirm the items to be transferred >> select Transfer Quote.
- The selected items will be added to the Manage Online Catalog Basket.
-
-
When done, select Add to Document.
-
You can select the Manage Online Catalog Basket to view the selected catalog items before adding them to the work document.
-
- The part entered will add to your Work Document under a new Job Grouping.
-
Clicking + Item on the Job Grouping provides additional options to add to the Job.
Using the Maintenance option
-
To add maintenance related labor times and parts to a document, from the Work screen, select Add Job >> Maintenance >> choose the vehicle information accordingly.
-
Select a Service Interval >> click Add >> select a parts catalog to view the associated part items.
-
Select a part from the Linked Part Categories menu >> enter a Quantity >> click Add.
-
Click the shopping cart to review and make changes to the selected items or...
-
Click Add to Document to place all of the selected items onto the Work Document and return to the Work screen.
-
