Viewing Live Data (PID - Parameter IDs)

×

Select a connection type:

  1. Connect to the vehicle.

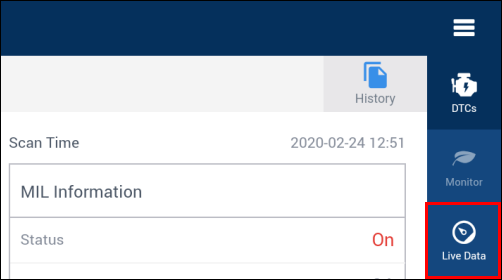

  2. From the Diagnostics or Basic Diagnostics app, select Live Data from the sidebar menu.

  3. Select a Group Type.

  4. Toggle the PIDs, that you want to read values for, to the on  (blue / right) position.

  5. Select one of the following ways to display the selected PID data:

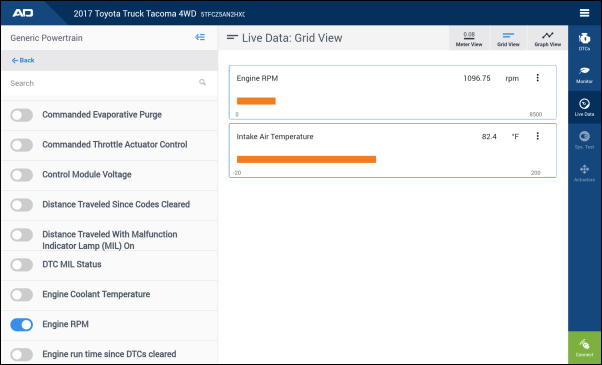

    • Grid View - Click the three dots button to set a min and max threshold to more accurately view when the graphed data is outside of parameters.

    • Graph View

    • Meter View
